Advanced Canister Options

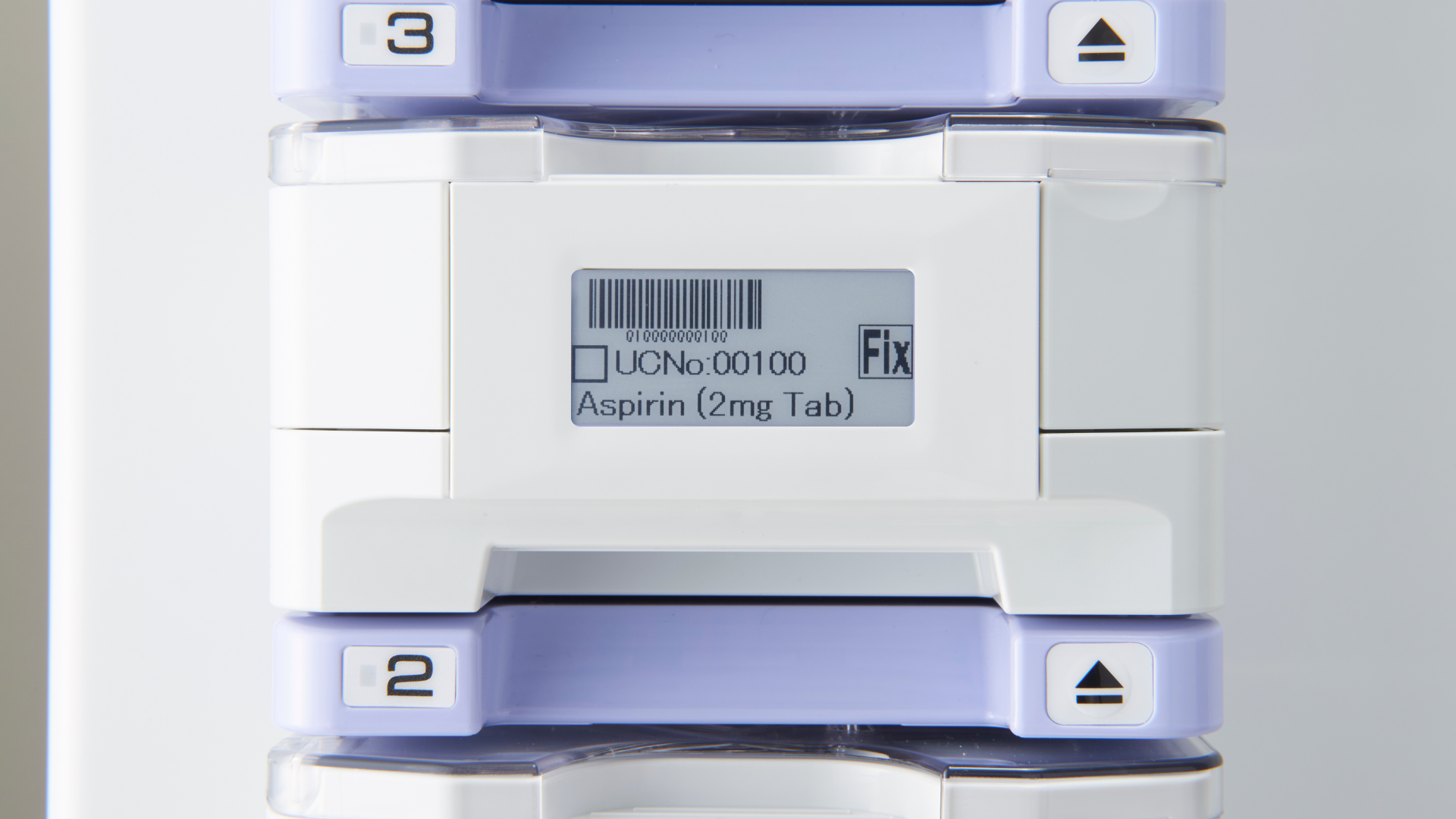

PROUD NEO supports Variable Canisters (VC), Lid-Lock Canisters (LC), Half-Cut Canisters (HC), and Universal Canisters (UC) as optional features. These advanced canister options reduce the need for manual tablet dispensing, helping minimize manual workload and reduce the risk of human error.
Variable Canisters Allow Medications to Be Changed as Needed

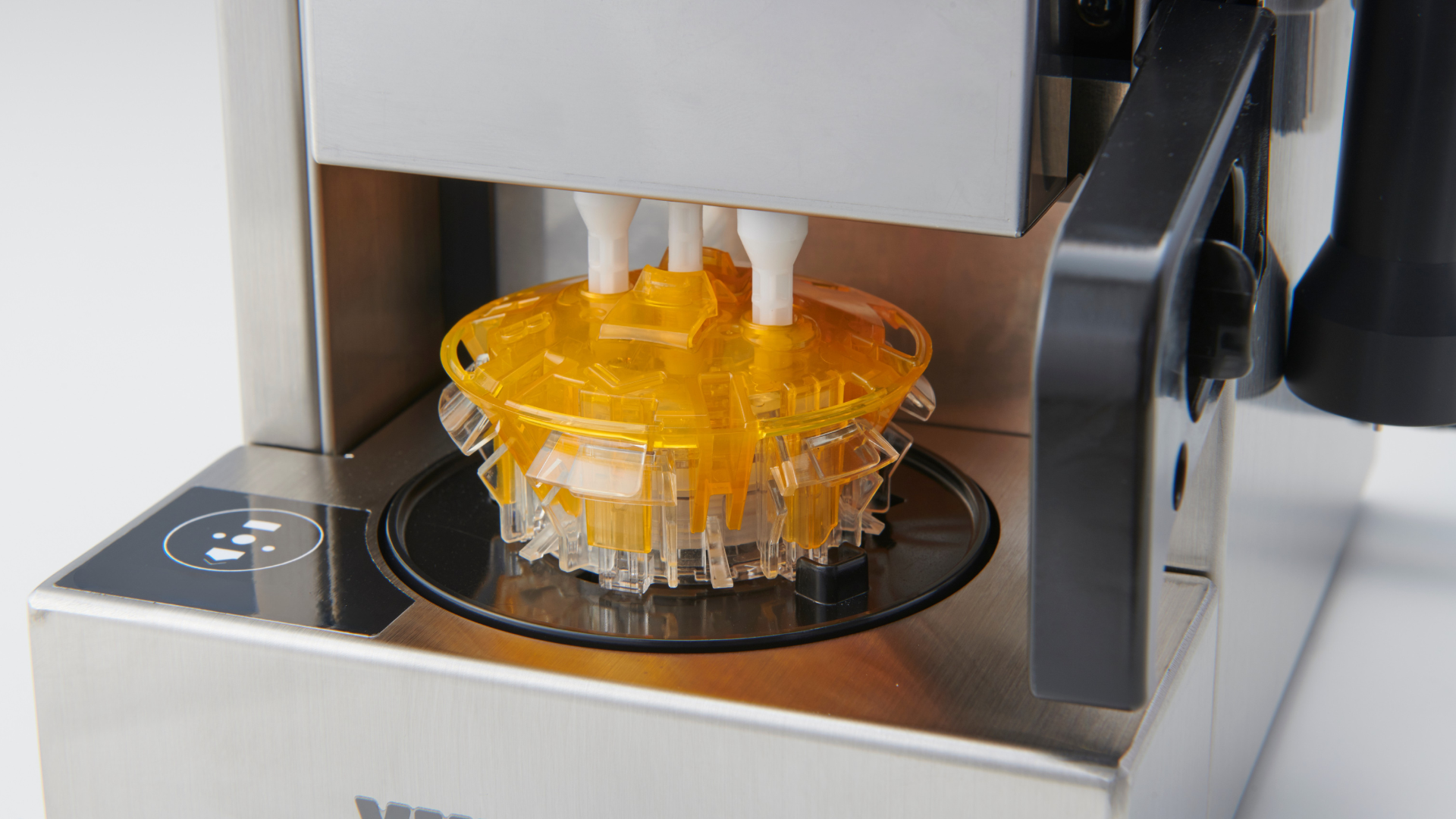

The Variable Canister (VC) system combines a calibration unit with a flexible canister design, allowing medications to be changed as needed. This innovative system reduces the time and effort required when introducing generic medications or switching medication types or forms.

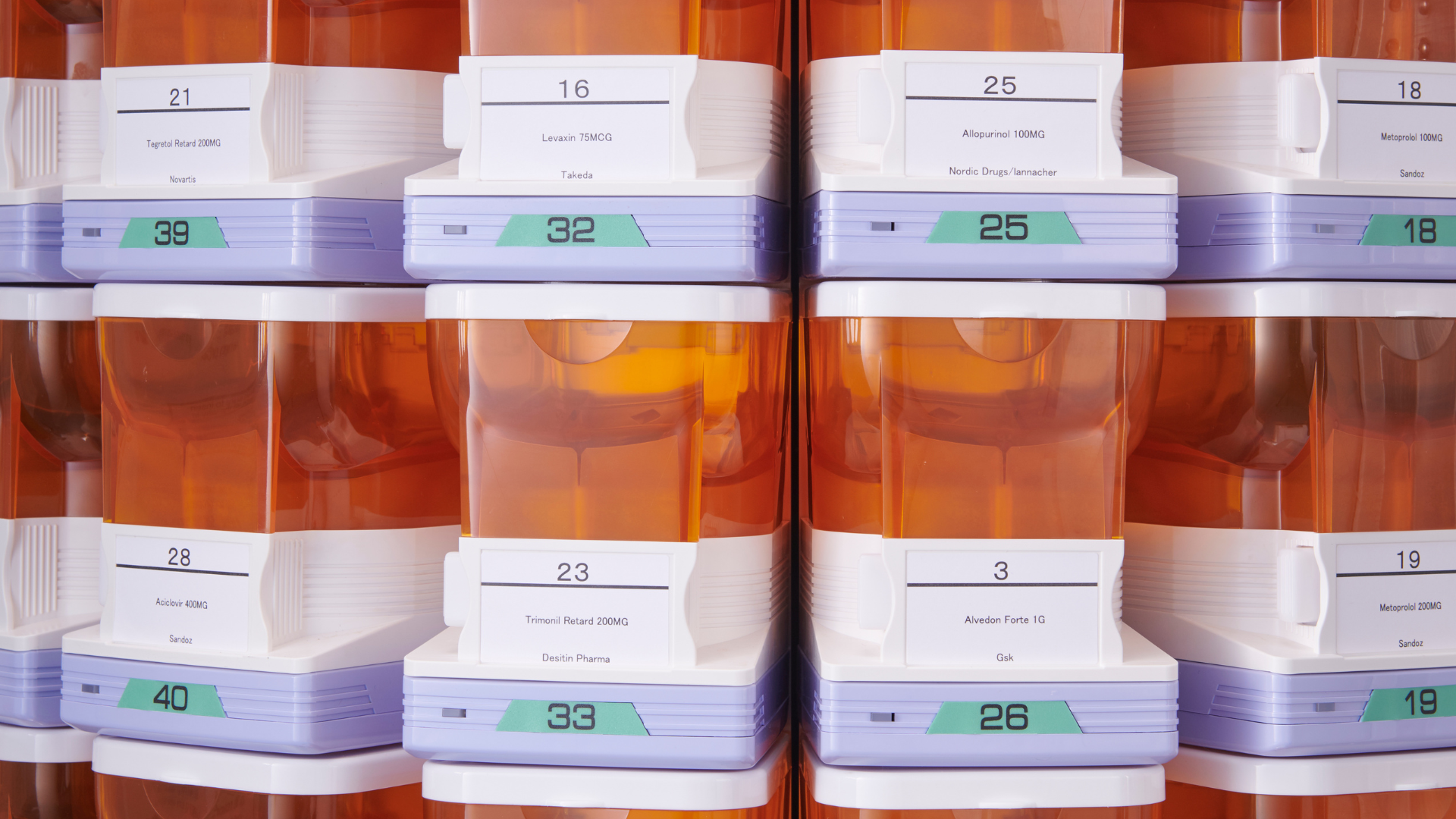

Multiple Canister Capacities to Fit Your Operational Needs
PROUD NEO is available in multiple canister capacity configurations, including 266, 304, 343, and 400 canisters. Choose the configuration that best fits your operational needs.
Specifications
- Product Name

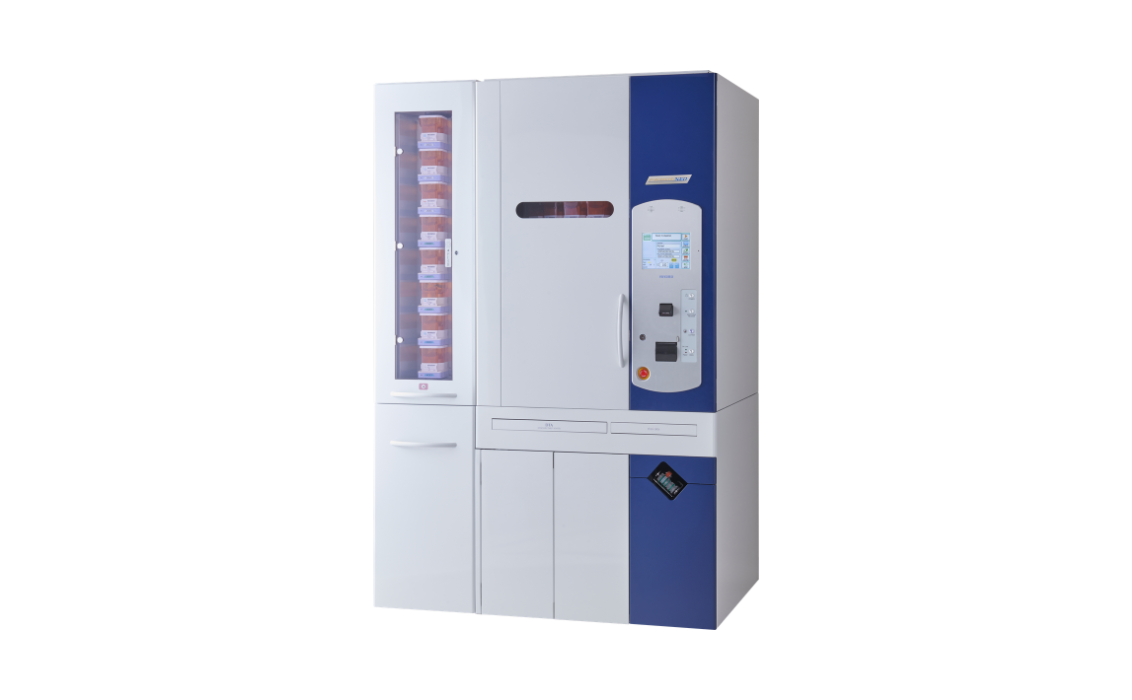

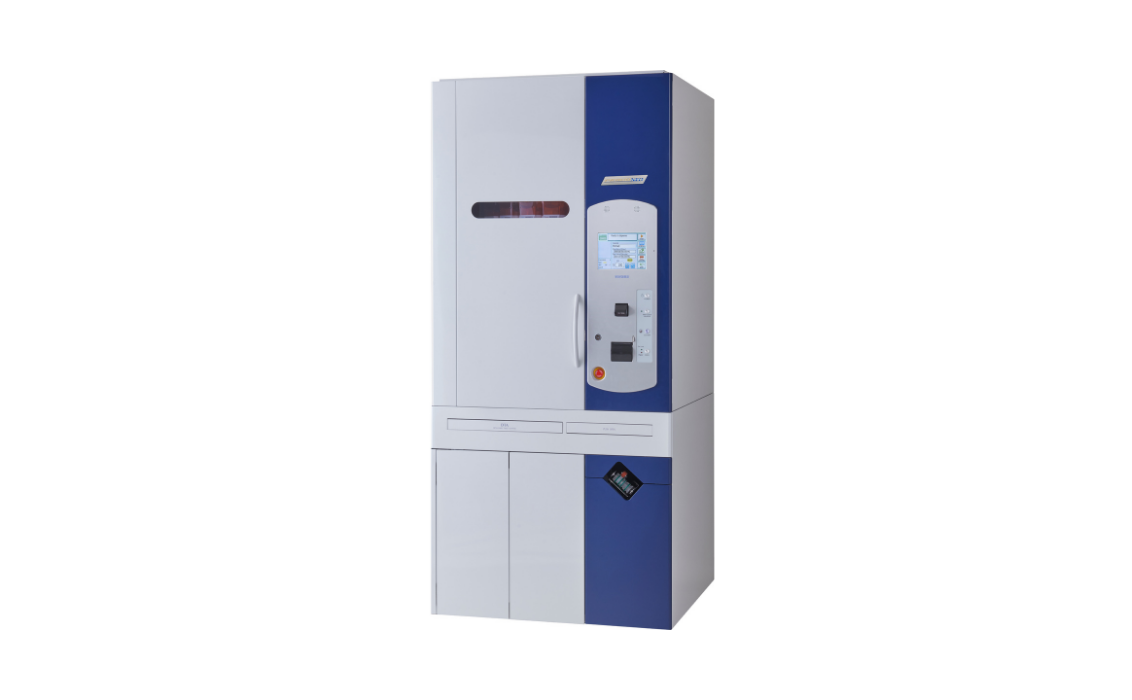

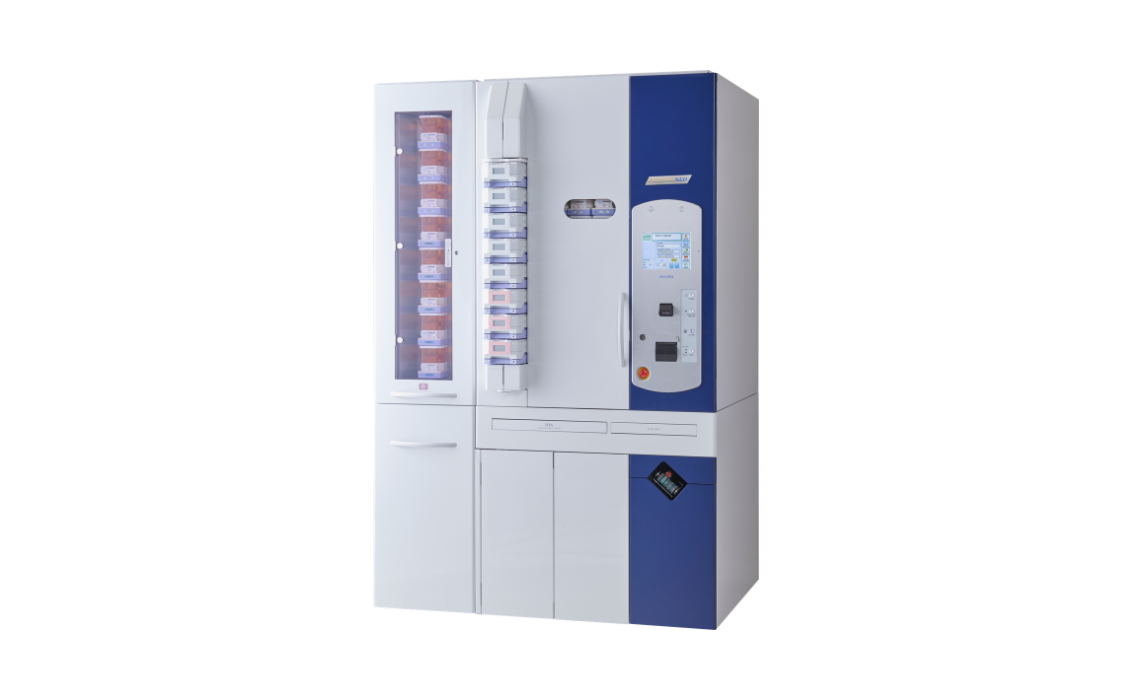

- PROUD, Full-Size Medication Packaging System
- External Dimensions
- 266FDS2
Without UC: 35.0 in (890 mm) W × 36.6 in (930 mm) D × 78.7 in (1,998 mm) H
With UC: 35.0 in (890 mm) W × 40.6 in (1,030 mm) D × 78.7 in (1,998 mm) H
343FDS2
Without UC: 50.8 in (1,291 mm) W × 36.6 in (930 mm) D × 78.7 in (1,998 mm) H
With UC: 50.8 in (1,291 mm) W × 40.6 in (1,030 mm) D × 78.7 in (1,998 mm) H
532FDS2*
Without UC: 70.1 in (1,780 mm) W × 36.6 in (930 mm) D × 78.7 in (1,998 mm) H
*The 532FDS2 does not support UC.
- Weight
- 266FDS2 / 304FDS2: Approx. 1,279 lb (580 kg)
343FDS2 / 400FDS2: Approx. 1,609 lb (730 kg)
532FDS2: Approx. 2,513 lb (1,140 kg)
*Weights exclude tablet canisters.
- Power Supply
- 120 VAC ±10%, 60 Hz
- Power Consumption
- 266FDS2: 800 VA max.
343FDS2: 1,000 VA max.
532FDS2: 1,500 VA max.
- Number of Cassettes
- 266FDS2: 266 L-size canisters
343FDS2: 343 L-size canisters
532FDS2: 532 L-size canisters
- Manual Dispensing Capacity
- 63 cells per cycle
- Packaging Speed
- Up to 60 pouches/min.
- Pouch Size
- Width: 2.4, 2.8, 3.0, 3.1, or 3.5 in (60, 70, 76, 80, or 90 mm)
Height: 2.8 in (70 mm)
