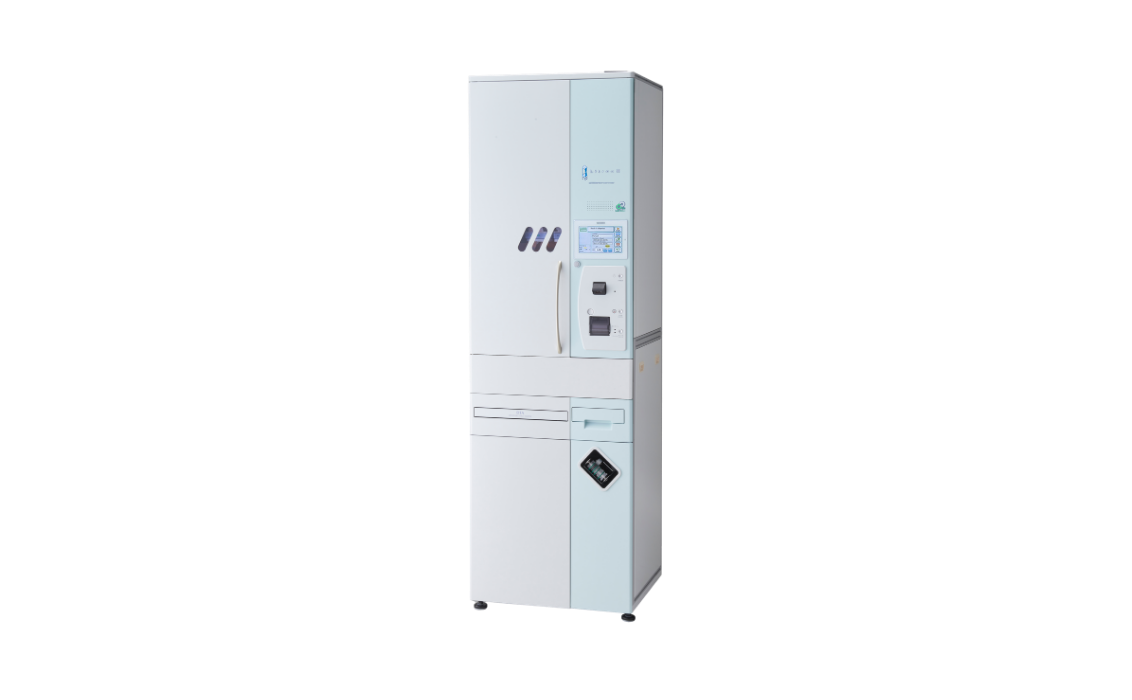

The Industry’s Smallest Fully-Automatic Compact Tablet Packaging Machine

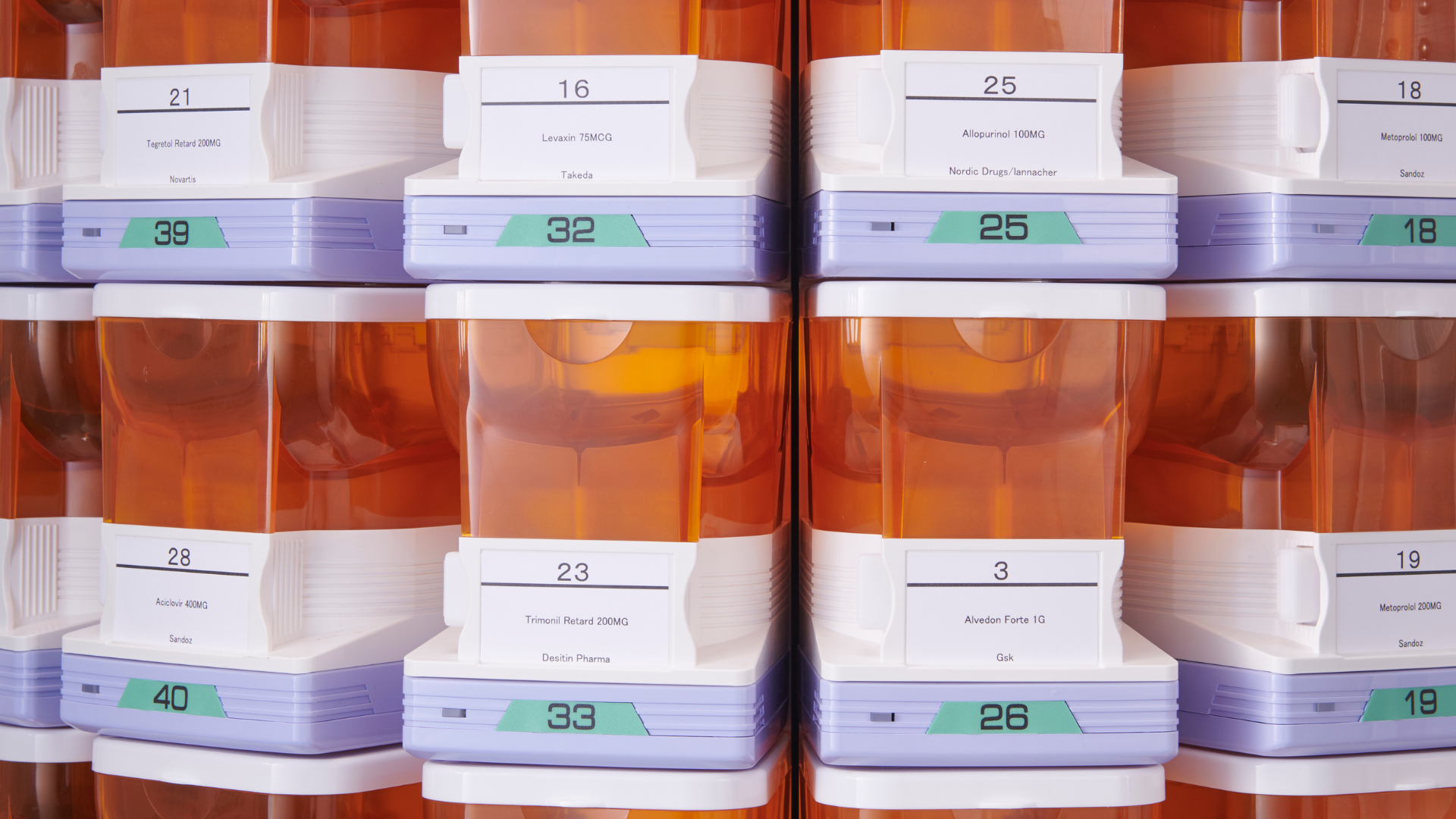

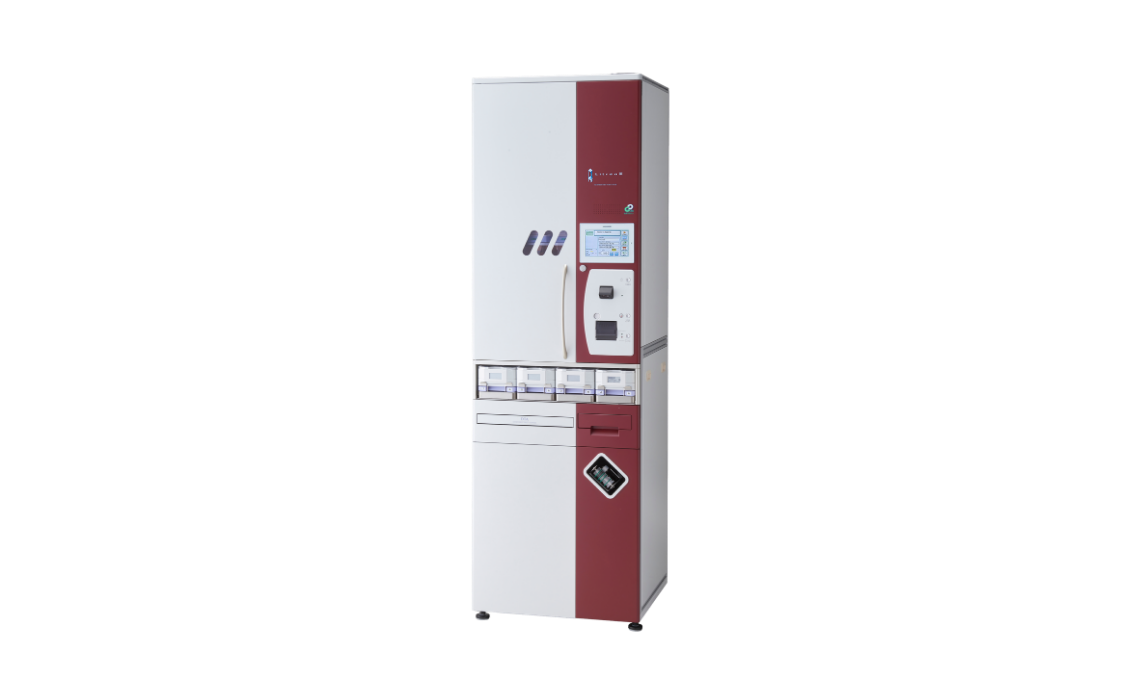

Four canister configurations are available: 112 canisters, 136 canisters with a slide unit, and UC (Universal Canister) versions of both configurations. Choose the configuration that best fits your operational needs.

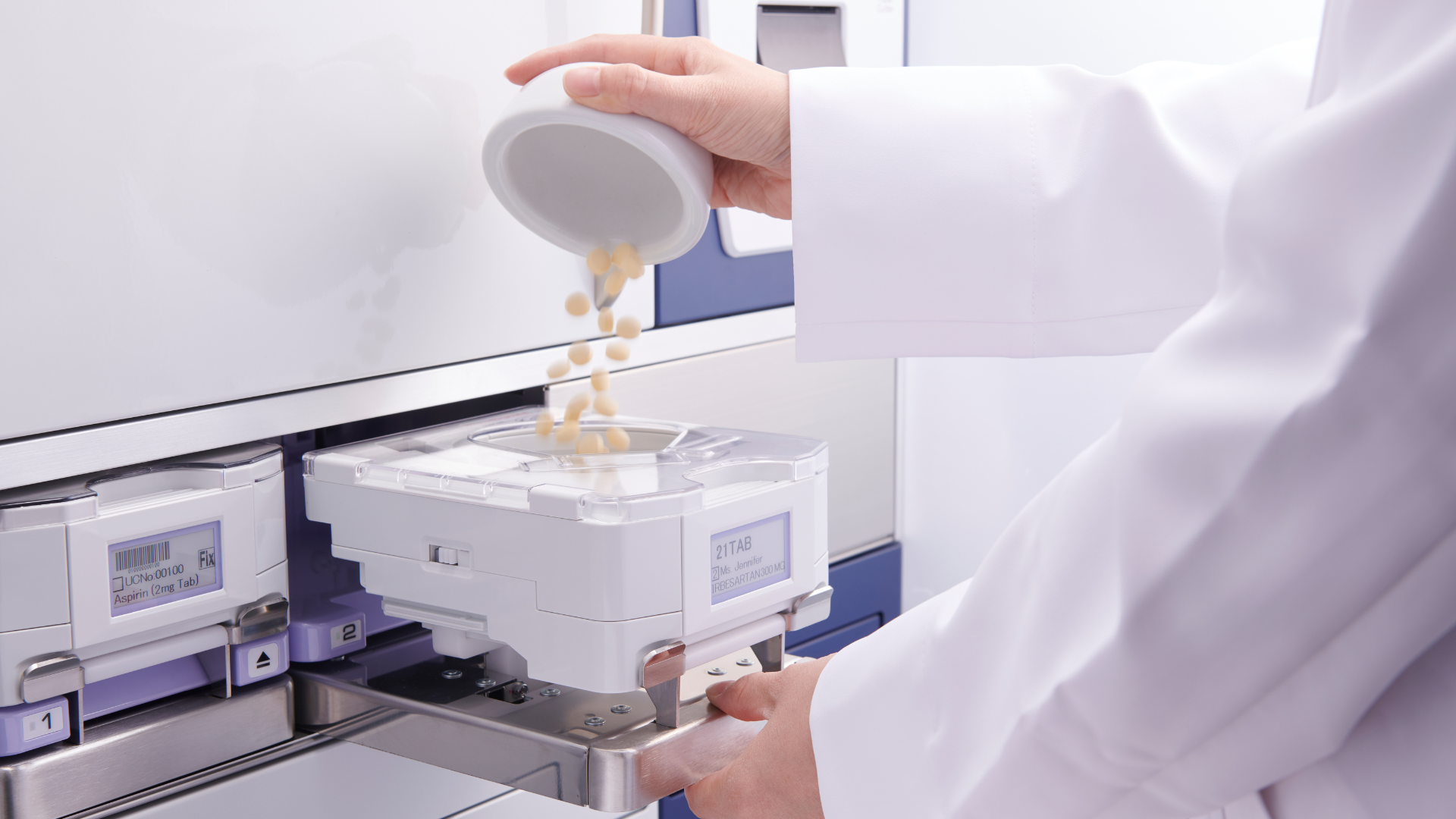

Versatile Universal Canister (UC)
Our Universal Canister (UC) automatically adjusts the dispensing outlet to accommodate different medications, allowing a wide variety of tablets to be dispensed from a single canister. Operation is simple—just load the medication into the UC. The UC unlocks only when the medication matches the GS1 DataBar information, helping prevent incorrect medication loading and dispensing errors.
*Optional feature.

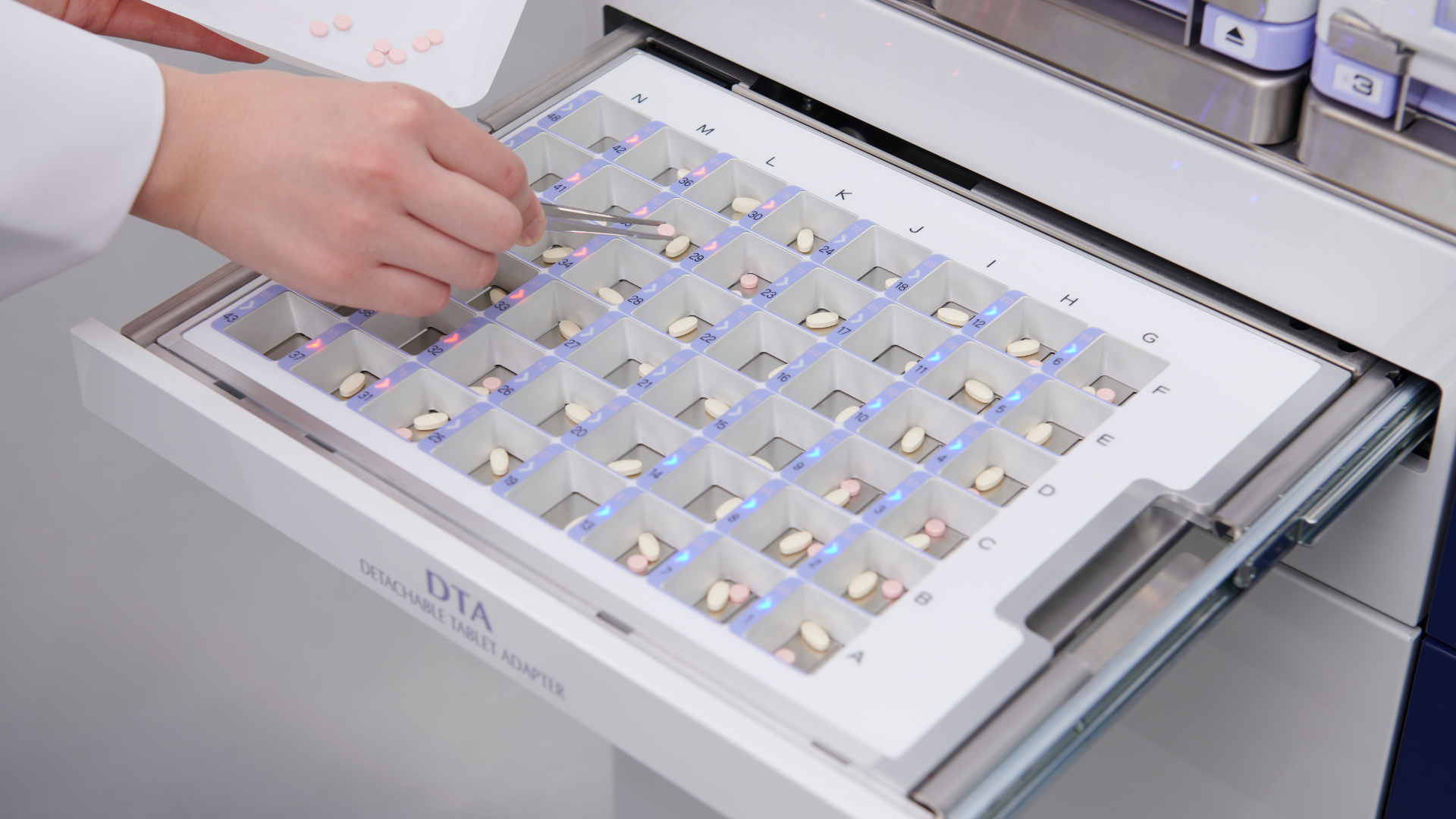

DTA (Detachable Tablet Adapter) Supports Manual Tablet Dispensing
The manual tablet dispenser features 48 cells, providing capacity equivalent to a two-week supply for prescriptions taken three times a day. Tablets can also be dispensed in two separate batches to accommodate longer-term prescriptions.An optional DTA (Detachable Tablet Adapter) instruction sheet can be printed using the system’s journal printer. The sheet clearly indicates the tablet location and quantity for each cell.
Specifications
- Product Name
- Litrea III, Mid-Size Medication Packaging Systems
- External Dimensions
- 112FDXIII: 24.0 in (610 mm) W × 24.7 in (627 mm) D × 77.9 in (1,979 mm) H
136FDXIII: 30.5 in (775 mm) W × 24.7 in (627 mm) D × 77.9 in (1,979 mm) H
- Weight
- 112FDXIII: Approx. 591 lb (268 kg)
136FDXIII: Approx. 769 lb (349 kg)
UC2: Add approx. 26 lb (12 kg)
UC4: Add approx. 37 lb (17 kg)
- Power Supply
- 120 VAC ±10%, 60 Hz
- Power Consumption
- 860 VA max.
- Number of Canisters
- 112FDXIII: 112 M-size canisters
136FDXIII: 136 M-size canisters
- Manual Dispensing Capacity
- 48 cells per cycle
- Packaging Speed
- Up to 60 packages/min.
- Pouch Size
- Width: 2.4, 2.8, 3.0, 3.1, or 3.5 in (60, 70, 76, 80, or 90 mm)
Height: 2.8 in (70 mm)
