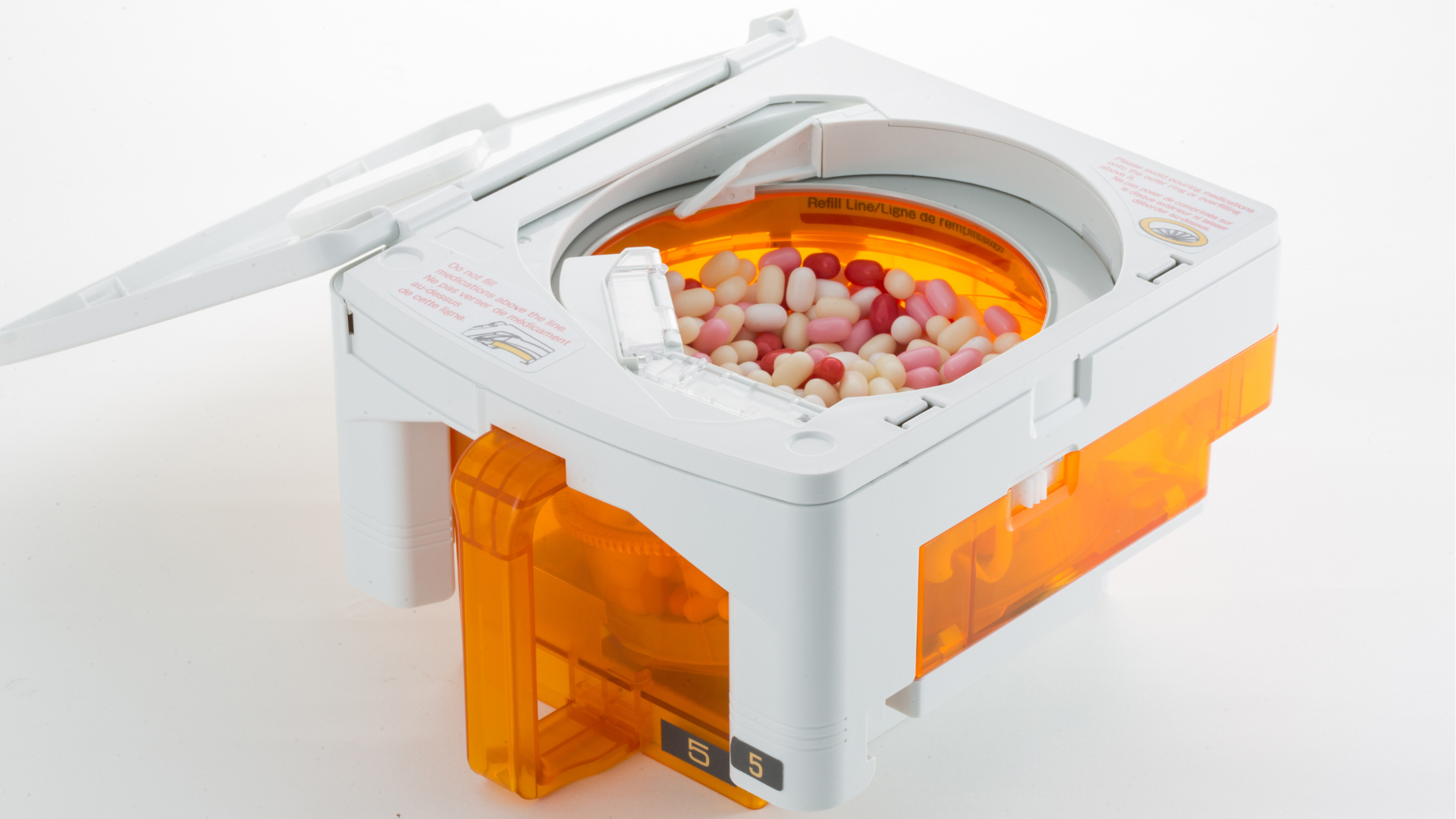

Advanced Universal Canisters for a Wide Range of Medications

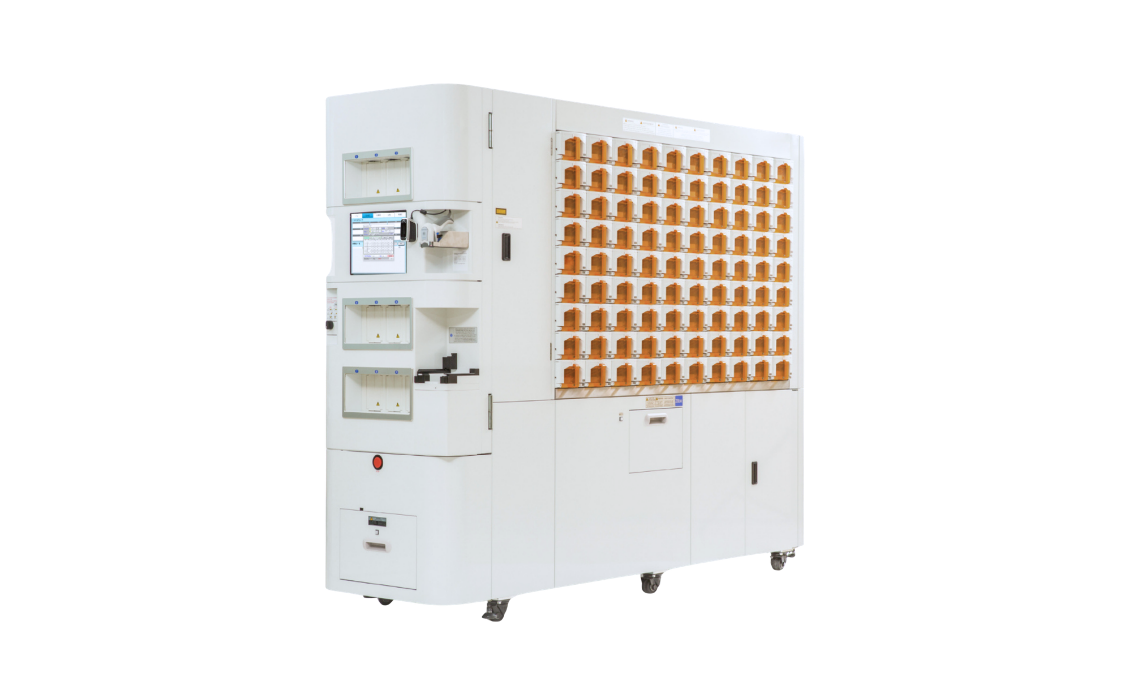

The EV-108UC and EV-180UC are equipped with 108 and 180 Universal Canisters (UC), respectively, making them ideal for pharmacies that dispense a wide variety of medications.
YUYAMA’s Universal Canisters can accommodate different medications as dispensing needs change, reducing the time and cost associated with replacing dedicated canisters.

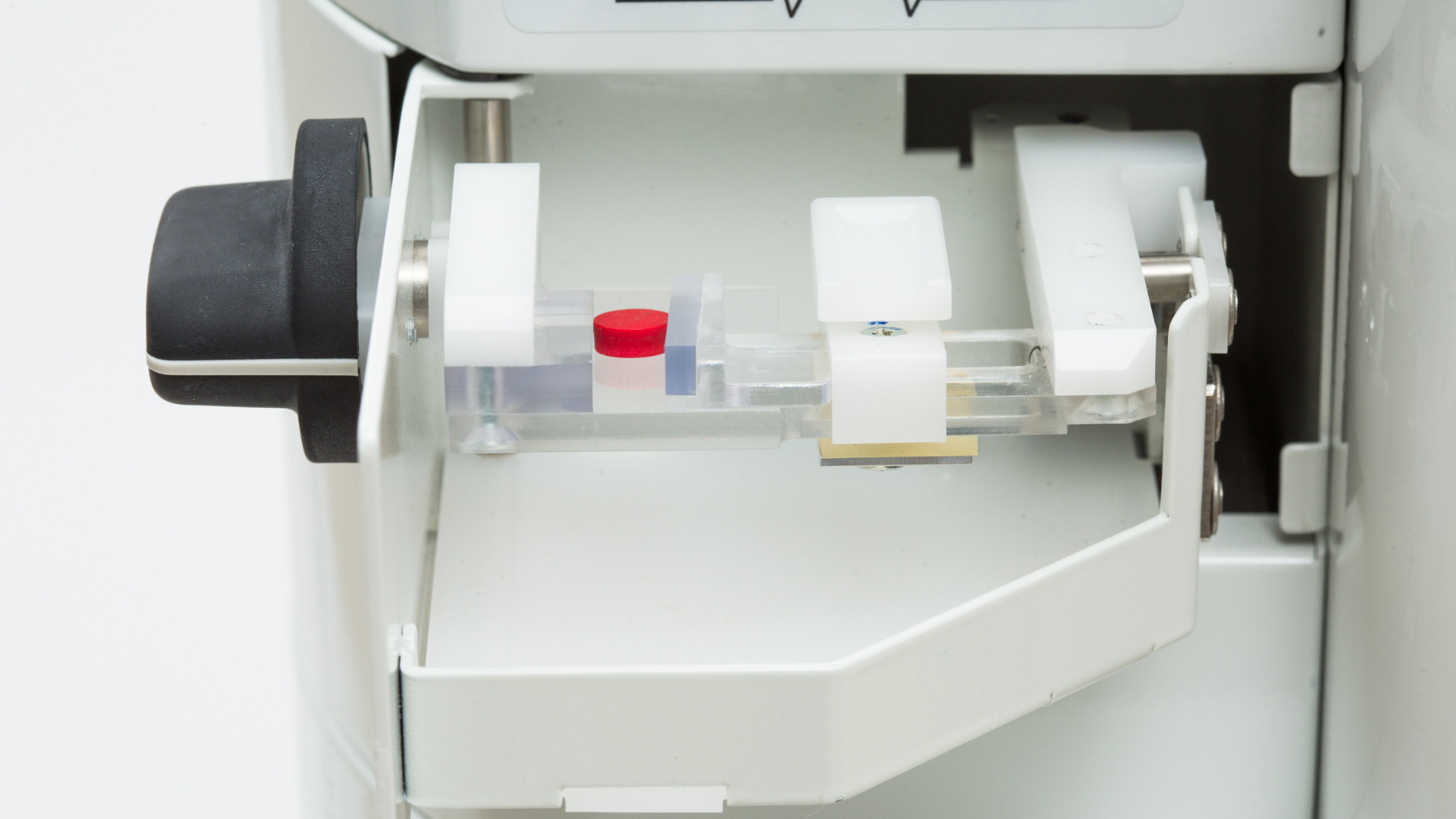

High-Precision Medication Imaging Station
The Medication Imaging Station captures high-resolution images of tablets and analyzes the image data to automatically calibrate each Universal Canister.
Image-based calibration provides precise canister adjustments without relying on conventional manual settings, helping reduce setup errors and maintain consistent dispensing accuracy.
Compatible with a Wide Range of Vial Sizes
The EV-108UC / EV-180UC eliminates the need to load vials individually. Multiple vials of the same type can be loaded at once for efficient dispensing.
The system supports 12, 13, 16, 20, and 40 DR vials from various manufacturers, providing the flexibility to accommodate different pharmacy workflows.*
*Please contact your YUYAMA sales representative for details on compatible vial manufacturers and specifications.
Specifications
- Product Name
- EV-108UC / EV-180UC, Fully Automatic Vial Dispensing System
- External Dimensions
- EV-108UC: 29.1 in (740 mm) W × 67.5 in (1,715 mm) D × 78.3 in (1,990 mm) H
EV-180UC: 29.1 in (740 mm) W × 93.3 in (2,370 mm) D × 78.3 in (1,990 mm) H
- Weight
- EV-108UC: Approx. 1,168 lb (530 kg)
EV-180UC: Approx. 1,433 lb (650 kg)
- Power Supply
- 120 VAC ±10%, 60 Hz
- Power Consumption
- 210 VA max.
- Dispensing Speed
- Up to 90 prescriptions/hour with continuous prescription data input
- Number of Canisters
- EV-108UC: 108 Universal Canisters
EV-180UC: 180 Universal Canisters
